Stainless Steel Screw Jacks 10 Ton

SWJ810, SWJ2410, DSWJ810, DSWJ2410

Joyce 10-ton stainless steel machine screw jacks lift loads up to 10 tons. They are specifically designed for applications that are located in wet, corrosive and harsh environments.  Upright or inverted, these jacks operate at full capacity in tension or compression and are available in Translating, Keyed for non-rotation and KFTN designs. SWJ single lead jacks are self-locking, and DSWJ, double lead jacks offer increased travel speed.

  • SWJ jacks, 2” diameter, .50” pitch, Acme 2C
  • DSWJ jacks, 2” diameter, .33” pitch, .66” lead, Acme 2C
  • All external surfaces and fasteners are stainless steel or bronze
  • Joyce/Dayton can customize jacks to your specifications

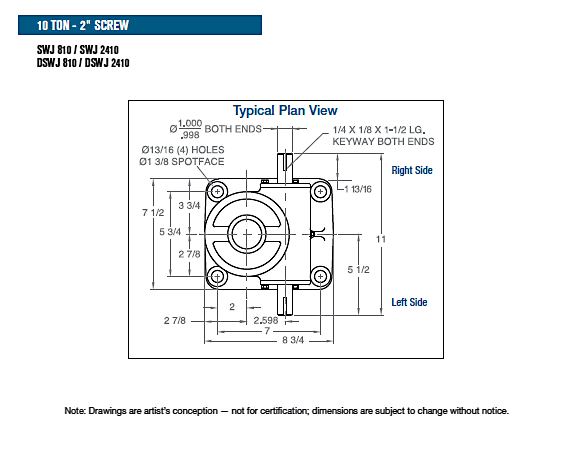

2D/3D Drawings

Login to access 2D/3D Drawings

Product Media

  • Housing is stainless steel
  • Lifting screw is 316 stainless steel
  • Input shaft (worm) is 17-4 PH stainless steel
  • Internal wormgear is aluminum bronze
  • Traveling Nut (KFTN) is aluminum bronze

Sample Part Number:

Click on the part number to reveal additional informaton about jack designs and shaft codes.

Model Number

2-Ton 2-Ton Reverse Base 5-Ton 10-Ton 15-Ton 20-Ton 25-Ton
SWJ62
SWJ122
SWJ242
RSWJ62
RSWJ122
RSWJ242
SWJ65
SWJ125
SWJ245
SWJ810
SWJ2410
SWJ815
SWJ2415
SWJ820
SWJ2420
SWJ1125
SWJ3225
DSWJ62*
DSWJ122*
DSWJ242*
DRSWJ62*
DRSWJ122*
DRSWJ242*
DSWJ65*
DSWJ125*
DSWJ245*
DSWJ810*
DSWJ2410*
DSWJ815*
DSWJ2415*
DSWJ820*
DSWJ2420*
DSWJ1125*
DSWJ3225*

Important Note: *Not self-locking, may lower under load. Brake motors or external locking systems are recommended.
D: Double Lead Screw
R: Reverse Base Jack, (only available on 2-ton and 50-ton jacks).

Jack Configuration

U=Upright

I=Inverted

End Conditions

1=T1
(plain end)

2=T2
(load pad)

3=T3
(threaded end)

4=T4
(male clevis)

Jack Designs

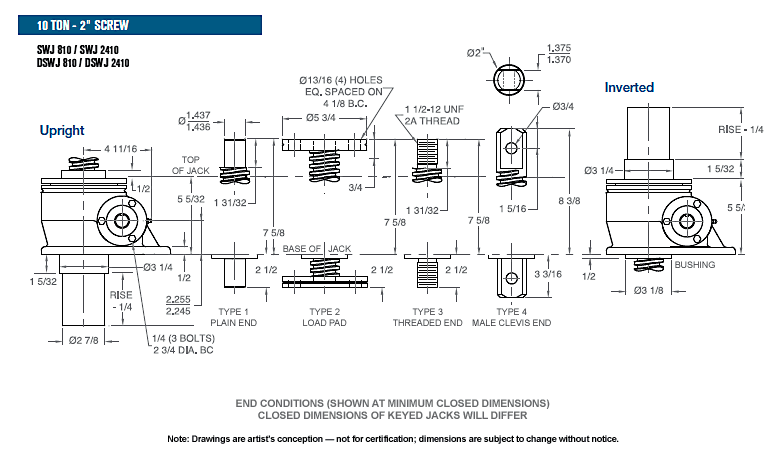

S=Translating

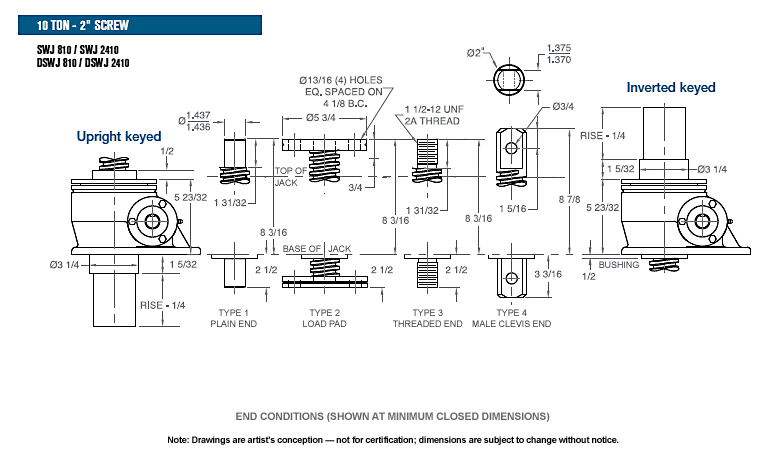

K=Keyed for Non Rotation

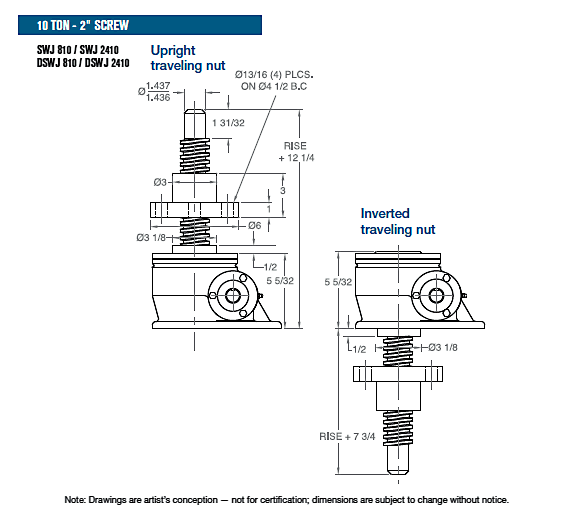

N=Traveling Nut

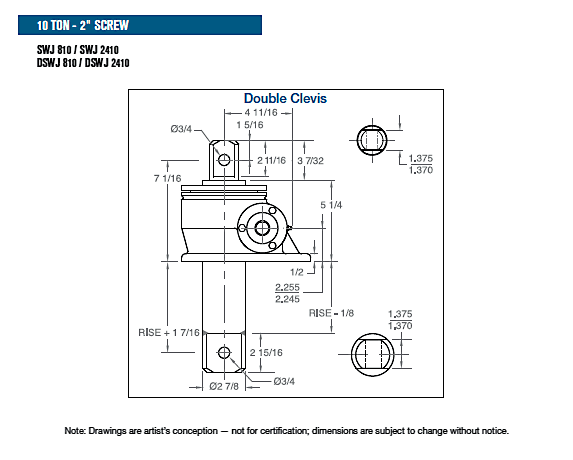

D=Double Clevis

R=KFTN Trunnion*
T=Trunnion*

* Standard trunnion mounts available on 2-ton through 20-ton jacks.

Stainless Steel Jack Rise

Rise is travel expressed in inches and not the actual screw length.

Left Side Shaft Code

Right Side Shaft Code

XXXX=Remove
STDX=Standard

XXXX=Remove
STDX=Standard




Optional Shaft Codes

Screw Stops and Boots

Screw stops are optional on stainless steel jacks. When specified, the closed height of the jack and/or the protection tube length may be increased. When boots are added to stainless steel jacks, the closed height of the jack may be increased.

Mechanical Counters

CNT0=0.001" Increments
Note: Contact Joyce/Dayton for availability and options.

Hand Wheels

HW04=4" dia
HW06=6" dia
HW08=8" dia
HW10=10" dia
HW12=12" dia

Geared Potentiometers

POTA=0-10V (IP65)
POTB=4-20MA (IP65)
POTC=0-10V w/2 switches*
POTD=4-20MA w/2 switches*
*Optional IP65 rating available

Encoders and Electronic Limit Switches

ENCX=Encoder
ELS2=2 Position Electronic Switch
ELS4=4 Position Electronic Switch
ELS6=6 Position Electronic Switch

Motor for Systems and Direct Drives

  • All standard motors are 3-phase, 208-230/460 VAC or 230/460 VAC. Other motor options are available. Specify the appropriate motor size from the chart on the right.
  • Refer to the "Additional Options" chart on the preceding page as needed.
  • Brake motors (M2) are recommended for jacks that are not self-locking, and jacks with double lead screws.
  • If the motor frequency will be varied to provide a "soft" start an inverter duty motor may be required.

Motors

Size Code
1/4 HP K
1/3 HP A
1/2 HP B
3/4 HP C
1 HP D
1-1/2 HP E
2 HP F
3 HP L
5 HP G
7-1/2 HP H
10 HP I
15 HP J

Motor Mounts

Ordering Example:
MMA A (Motor code from chart above)

MMA=56C
MMB=140TC
MMC=180TC
MMD=210TC

Standard motor adapters are aluminum

Mechanical Limit Switches

Ordering Example:
LA (Models) 1(Number of DPDT Switches) 3(Available Positions)

Model Code   Available Positions
LS7-402 LI

Number of DPDT Switches

NOTE: Will always be 0 for LS7 models

  1 2* 3 4 5 6* 7 8
LS8-402 LA Left Side Shaft Options
LS8-504 LB
LS9-502 LC
LS9-503 LD Right Side Shaft Options
LS9-504 LE
LS9-505 LF
LS9-506 LG
  • 2, 3, 5, 10, 15, and 20 ton jacks are available with positions #1, #3, and #5
  • 25, 30, 35, 50, 75, 100, and 150 ton jacks are available with positions #1, #4, #7, and #8

These positions are not standard. Contact Joyce/Dayton with your requirements.

LS9-507 LH

Additional Options

  • X=Standard Jack, no additional options
  • S=Additional Specification Required (comment as necessary)

Anti-Backlash

  • A=Split Nut
  • A90=A90 Design
  • A95=A95 Design

Protective Boots

  • B=Protective Boot
  • D=Dual Protective Boot

Finishes

  • F1=Do Not Paint
  • F2=Epoxy Paint
  • F3=Outdoor Paint Process

Motor Options

  • M1=Less Motor
  • M2=Brake Motor
  • M3=Single Phase Motor (120VAC)
  • M4=50Hz Motor

Grease/Seals

  • H1=High Temperature Operation
  • H2=Food Grade

Screw Stops

  • ST0=Extending
  • ST1=Retracting
  • ST2=Both
  • Specify as many options as needed

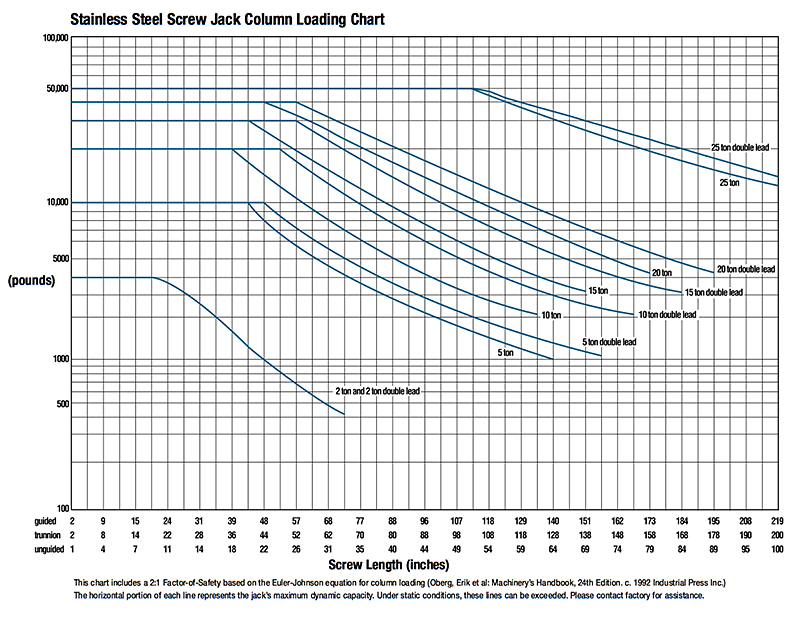

Model Capacity Screw Diameter (inches) Thread Pitch/Lead Worm Gear Ratio Worm Shaft Turns for 1" Travel Tare Torque (Inches Lbs.) Starting Torque (Inches Lbs.) Operating Torque (Inches Lbs.) Efficiency Rating % Approx Screw Torque (Inches Lbs.) Basic Jack Weight (Lbs.) Jack Weight
per Inch Travel(Lbs.)
SWJ810 10 ton 2 .500 pitch
ACME 2C
8:1 16 30 .061W* .043W* @
200 RPM
23.1 .195W* 43 1.3
SWJ2410 10 ton 2 .500 pitch
ACME 2C
24:1 48 30 .030W* .018W* @
200 RPM
18.8 .195W* 43 1.3
DSWJ810 10 ton 2 .333 pitch
.667 lead ACME 2C
8:1 12 30 .070W* .062W* @
200 RPM
31.9 .228W* 43 1.3
DSWJ2410 10 ton 2 .333 pitch
.667 lead ACME 2C
8:1 12 30 .070W* .062W* @
200 RPM
31.9 .228W* 43 1.3

Important Note: Series DSWJ models may lower under load. Brake motors or external locking systems are recommended.
(R): Reverse Base Jack.
*W: Load in pounds.
Tare Torque: Initial torque to overcome seal and normal assembly drag. This value must be added to starting torque or operating torque values.
Starting Torque: Torque value required to start moving a given load (dissipates to operating torque values once the load begins moving).
Operating Torque: Torque required to continuously raise a given load at the input RPM listed.
Note: If your actual input RPM is 20% higher or lower than the listed RPM, please refer to our JAX® program to determine actual torque values at your RPM.
Screw Torque: Torque required to resist screw rotation (Translating Design Jacks) and traveling nut rotation (Keyed for Traveling Nut Design Jacks).
Lead: The distance traveled axially in one rotation of the lifting screw.
Pitch: The distance from a point on a screw thread to a corresponding point on the next thread, measured axially.
