Joyce offers hand wheels in a variety of diameters. They are recommended for self-locking jacks and actuators and can be mounted directly to the jack input shaft.

  • HW04 - 4" diameter
  • HW06 - 6" diameter
  • HW08 - 8" diametrer
  • HW10 - 10" diameter
  • HW12 - 12' diameter

Ordering Information:

Since hand wheels are are mounted directly onto jacks and actuators and specified as part of the complete jack part number. Their specific selection is dependent on input torque requirements. Refer to the ordering section for the products on which they will be used.

2D/3D Drawings

Login to access 2D/3D Drawings

Product Media

jack
  • Aluminum hand wheels standard
  • Stainless steel hand wheels available upon request

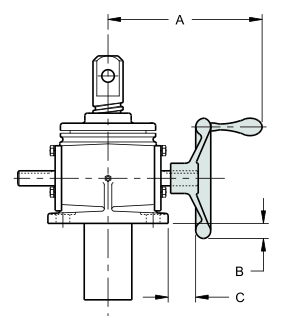

Hand Wheel Dimensions
Jack Capacity Dimension 4" Diameter HW04 6" Diameter HW06 8" Diameter HW08 10" Diameter HW10 12" Diameter HW12
250, 500 Lb. and 1,000 Lb. A 4 5/8 6 1/8
B 1 2
C 3/8 3/4
1 Ton A 5 3/8 6 7/8 7 5/8 8 1/2 8 7/8
B 1/2 1 1/2 2 1/2 3 1/2 4 1/2
C 5/8 1 1 3/8 1 7/8 2 1/4
2 Ton Standard Base A 5 7/8 7 1/4 8 9 9 1/4
B 1/4 1 1/4 2 1/4 3 1/4 4 1/4
C 0 3/8 3/4 1 1/4 1 5/8
2 Ton Reverse Base A 5 3/4 7 1/4 8 9 9 1/4
B 1/4 1 1/4 2 1/4 3 1/4 4 1/4
C 1 3/4 2 1/8 2 1/2 3 3 3/8
2.5 Ton A 5 3/4 7 1/4 8 9 9 1/4
B 1/4 1 1/4 2 1/4 3 1/4 4 1/4
C 1 1/2 1 7/8 2 1/4 2 3/4 3 1/8
3 Ton A 5 3/4 7 1/4 8 9 9 1/4
B 1/4 1 1/4 2 1/4 3 1/4 4 1/4
C 1 1/2 1 7/8 2 1/4 2 3/4 3 1/8
5 Ton A 6 3/8 7 3/4 8 3/4 9 1/2 10
B 0 3/4 1 3/4 2 3/4 3 3/4
C 1 1/8 1 1/2 1 7/8 2 3/8 2 3/4
10 Ton A     9 3/8 10 1/4 10 5/8
B     1 3/4 2 3/4 3 3/4
C     1 7/8 2 3/8 2 3/4
15 Ton A     9 3/8 10 1/4 10 5/8
B     1 1/4 2 1/4 3 1/4
C     1 3/4 2 1/4 2 5/8
20 Ton A     9 3/8 10 1/4 10 5/8
B     3/4 1 3/4 2 3/4
C     1 1/2 2 2 3/8

Hand wheels are recommended for self-locking jacks. They are aluminum.
