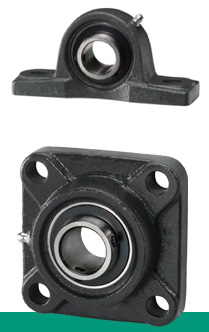

Pillow blocks and flange blocks are important components in jack and actuator systems. They are sometimes needed to support long shafts or the ends of rotating screws.Joyce Ductile iron pillow blocks and flange blocks include self-aligning replaceable bearings that are pre-lubricated with lithium grease. They include steel retainers, and nitrile rubber seals with steel guards. They are suitable for use under normal duty operation.

Product Specifications for Pillow Blocks:

These pillow block supports (PB-) are available from 1/2” diameter through 2” diameter. Contact Joyce/Dayton for other sizes.

Product Specifications for Flange Blocks:

These flange block supports (FB-) are available from 1/2” diameter through 1 3/4” diameter. Contact Joyce/Dayton for other sizes.

Product Media

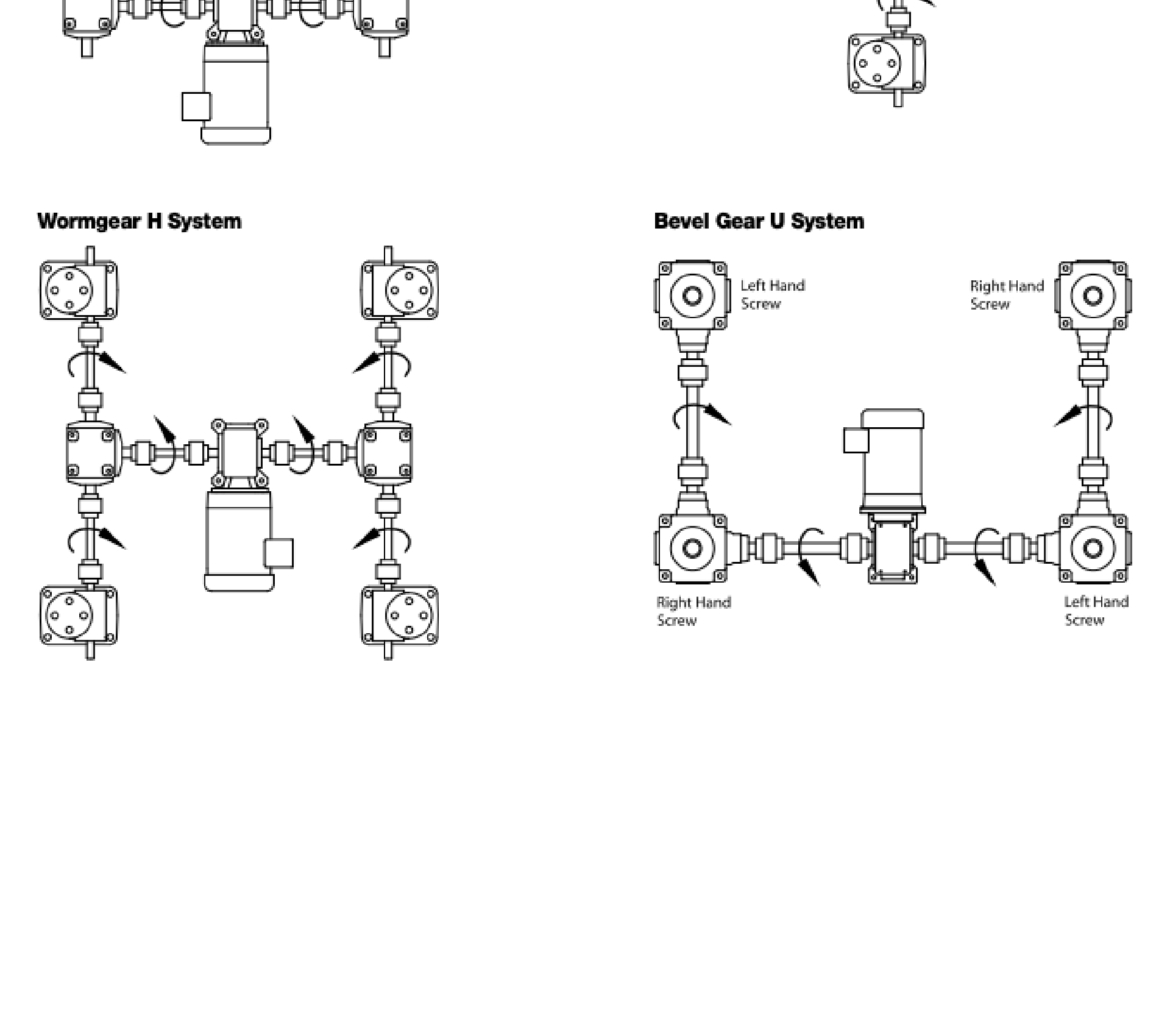

PILLOW & FLANGE BLOCK SUPPORTS COMMON SYSTEM LAYOUT SHAFTING DIAMETER CHART
jack

Note: Drawings are artist's conception - not for certification; dimensions are subject to change without notice.

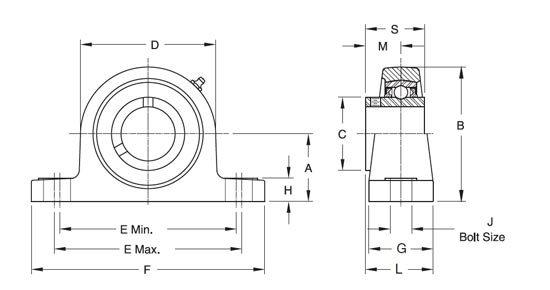

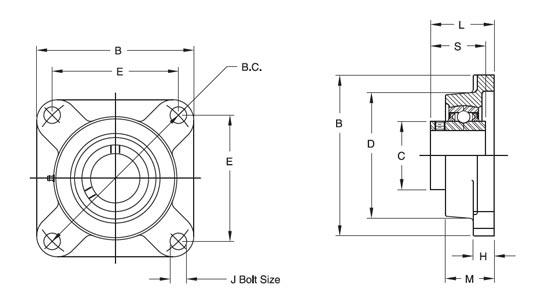

PILLOW BLOCKS DIAGRAM FLANGE BLOCKS DIAGRAM
  • Ductile iron housings
  • Nitrile rubber seals
2 Bold Pillow Blocks - Ductile Iron Housing - For Low Shaft Height - Setscrew Lock - Wide Inner Ring
Part Number Shaft Size A B C D E Min E Max. F G H J L M S Wt. Lbs.
PB-050 1/2 1 1/16 2 1/8 0.969 2 1/4 3 3/8 3 5/8 4 3/4 1 3/8 33/64 3/8 1 5/16 0.626 1.079 1.2
PB-063 5/8
PB-075 3/4 1 1/4 2 1/2 1.142 2 5/8 3 3/4 3 31/32 5 1/32 1 1/2 35/64 3/8 1 15/32 .720 1.220 1.9
PB-100 1 1 5/16 2 5/8 1.339 2 25/32 4 4 1/4 5 1/2 1 9/16 19/32 3/8 1 9/16 0.776 1.339 2.4
PB-125 1 1/4 1 13/16 3 19/32 1.843 3 27/32 4 13/16 5 3/16 6 9/16 1 7/8 45/64 1/2 1 15/16 1.000 1.689 3.8
PB-144 1 7/16
PB-169 1 11/16 2 1/16 4 1/8 2.260 4 17/32 5 9/16 5 15/16 7 7/16 2 1/8 25/32 1/2 2 1/4 1.189 1.937 5.4
PB-175 1 3/4
PB-200 2 2 7/16 4 27/32 2.705 5 5/16 6 7/8 7 3/8 9 1/8 2 3/8 29/32 5/8 2 1/2 1.315 2.189 8.7
4 Bolt Flange Blocks - Ductile Iron Housing - Setscrew Lock - Wide Inner Ring
Part Number Shaft Size B B.C C D E H J L M S Wt. Lbs.
FB-050 1/2 3 3 0.969 2 3/32 2 1/8 7/16 3/8 1 7/32 31/32 1.079 1.0
FB-063 5/8
FB-075 3/4 3 3/8 3 5/8 1.142 2 3/8 2 1/2 19/32 3/8 1 15/32 1 5/32 1.220 1.5
FB-088 7/8 3 21/32 3 57/64 1.339 2 3/4 2 3/4 19/32 7/16 1 17/32 1 3/16 1.339 1.9
FB-100 1
FB-125 1 1/4 4 9/16 5 1/8 1.843 3 9/16 3 5/8 11/16 1/2 1 27/32 1 3/8 1.689 4.4
FB-144 1 7/16
FB-150 1 1/2 5/32 5 43/64 2.063 4 1/32 4 11/16 1/2 2 1/8 1 17/32 1.937 5.6
FB-175 1 3/4 5 5/16 5 27/32 2.260 4 1/4 4 1/8 23/32 1/2 2 1/8 1 9/16 1.937 6.0
