Multipurpose Actuators (12 VDC) - Lift up to 500N

MA0513

Joyce multipurpose linear actuators are compact, versatile and designed to lift up to 500N (112 pounds) dynamic load, and 2000N (450 pounds) static load. Each 12 VDC actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications.

  • Clevis-to-clevis mounting
  • Stroke lengths of 100 mm (3.9 in.), 150 mm (5.9 in.), 250 mm (9.8 in.), and 300 mm (11.8 in.)
  • Self-locking
  • 25% duty cycle
  • Potentiometer and preset limit switch
  • Optional DC controls
PART NUMBER VOLTAGE LOAD N
(lbs)
TRAVEL SPEED
mm/sec
(in/min)
STROKE
mm
(in)
RETRACTED(A)
mm
(in)
MA 0513 B 1110 12 VDC 500
(112)
13
(31)
100
(3.9)
246
(9.7)
MA 0513 B 1115 12 VDC 500
(112)
13
(31)
150
(5.9)
297
(11.7)
MA 0513 B 1125 12 VDC 500
(112)
13
(31)
250
(9.8)
399
(15.7)
MA 0513 B 1130 12 VDC 500
(112)
13
(31)
300
(11.8)
450
(17.7)

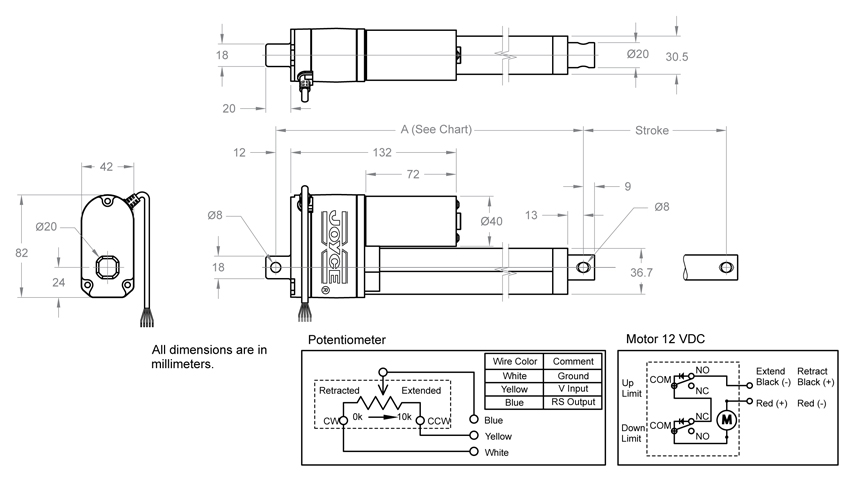

2D/3D Drawings

Login to access 2D/3D Drawings

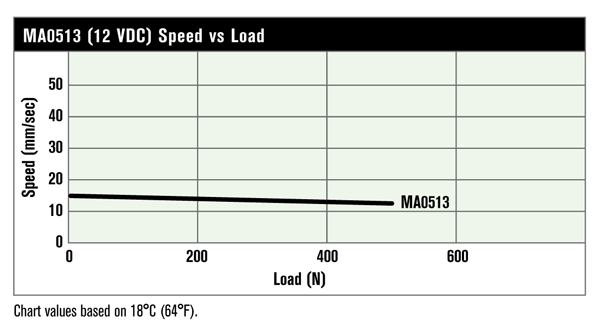

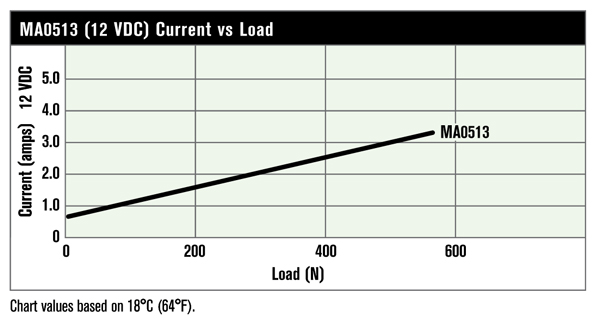

Product Media

  • Aluminum extension tube and outer tube
  • Clevis-to-clevis mounting
  • IP65 protection rating
  • Preset limit switch cannot be adjusted
  • Potentiometer

Sample Part Number:

Click on the part number to reveal additional informaton about jack designs and shaft codes.

Model Number

500N
(122 lb) DC
1500N
(337 lb) AC & DC
2500N
(562 lb) AC & DC
3500N
(787 lb) AC & DC
4500N
(1012 lb) AC & DC
7000N
(1574 lb) AC & DC
MA0513 MA1527



MA2547 MA3507
MA3527
MA4514 MA7007

Type of switch

B = Potentiometer and preset limit switches

Voltage

1 = VDC 8 = VAC
12 VDC 12 VDC 120 VAC

MA0513

MA1527, MA2547, MA3507, MA3527, MA4514, MA7007

MA1527, MA2547, MA3507, MA3527, MA4514, MA7007

IP Rating

1 = IP65
Dust tight and protected against water jets

Stroke

Rise is travel expressed in inches and not the actual screw length.

Part Number Voltage Load N
(lbs)
Travel Speed
mm/sec
(in/min)
Stroke
mm
(in)
Retracted (A)
mm
(in)
MA0513B1110 12 VDC 500
112
13
31
100
3.9
246
9.7
MA0513B1115 12 VDC 500
112
13
31
150
5.9
297
11.7
MA0513B1125 12 VDC 500
112
13
31
250
9.8
399
15.7
MA0513B1130 12 VDC 500
112
13
31
300
11.8
450
17.7
