1" - 4 Single Lead Acme

Page Header

1" - 4 Single Lead Acme

1" - 4 Single Lead Acme

This 1” - 4 single lead acme machine screw is available in both alloy steel and stainless steel with a corresponding aluminum bronze nut. Choose from right-hand or left-hand threads.

MACHINE SCREW SPECIFICATIONS RH LH
ALLOY STEEL SCREW NO. AS 100 R 025 A AS 100 L 025 A
STAINLESS STEEL SCREW NO. AS 100 R 025 S A S100 L 025 S
THREAD FORM  ACME
SCREW DIAMETER - TURNS / INCH 1-4
PITCH / LEAD 0.250 IN.
ROOT DIAMETER 0.699 IN.
SCREW WEIGHT (LB./FT.) 2.2
TORQUE TO RAISE 1 POUND 0.097 IN.-LB.
MAXIMUM SCREW LENGTH 12 FEET

Nut and Flange Specifications

jack
NUT SPECIFICATIONS RH LH
NUT PART NO. AN 100 R 025 B AN 100 L 025 B
NUT WITH FLANGE PART NO. AF 100 R 025 AF 100 L 025
DYNAMIC LOAD CAPACITY (LBS.) 5,000
STATIC LOAD CAPACITY (LBS.) 16,000
EFFICIENCY 41.9%
MATERIAL BRONZE
NOMINAL DIAMETER "A" 1.50 IN.
NUT LENGTH "B" 1.50 IN.
THREAD LENGTH "C" 0.50 IN.
THREAD SIZE 1.375-16 UN
FLANGE PART NUMBER FL-1375
FLANGE DIAMETER "D" 2.75 IN.
FLANGE THICKNESS "E" 0.52 IN.
FLANGE HOLE DIAMETER "F" 0.266 IN.
NUMBER OF HOLES IN FLANGE  "G" 4
FLANGE BOLT CIRCLE "H" 2.260 IN.
FLANGE MATERIAL BLACK OXIDE COATED STEEL

2D/3D Drawings

Login to access 2D/3D Drawings

Product Media

jack
  • Alloy steel or stainless steel screw
  • Aluminum bronze nut
  • Steel flange with black oxide coating

Sample Part Number:

Click on the part number to reveal additional information about the screw design and shaft codes.

Model Number

Thread Form

A: Acme
S: Stub Acme

Component

A: Assembly
S: Screw - without ball nut or bearing mounts

Screw Diameter - Thread direction - TPI (English)

Dia/TPI Code
1/2 – 8 050 R 013 (Stub Acme)
5/8 – 8 * 063 R 013 (Stub Acme)
5/8 – 4 * 063 R 025 (Stub Acme)
5/8 – 2 063 R 050 (Stub Acme)
3/4 – 5 * 075 R 013
7/8 – 2 * 088 R 050
1 –10 100 R 010
1 – 4 * 100 R 025
1 – 2 100 R 050
1 – 1 100 R 100 (Stub Acme)
1 1/4 – 4 125 R 025
1 1/2 – 4 150 R 025
1 1/2 – 2 2/3 150 R 038
1 1/2 – 2 2/3 * 150 R 038 (Stub Acme)
1 1/2 – 2 150 R 050
2 – 4 200 R 025
2 – 2 * 200 R 050
2 1/4 – 4 * 225 R 025
2 1/4 – 2 * 225 R 050
2 1/2 – 4 250 R 025
2 1/2 – 2 * 250 R 050
3 3/8 – 1 1/2 338 R 067 (Stub Acme)
3 1/2 – 1 1/2 350 R 067
3 3/4 – 1 1/2 375 R 067
4 1/2 – 1 1/2 450 R 067
5 – 1 1/2 500 R 067
6 – 1 1/3 600 R 075

R – Right-hand – all thread diameters/leads are available with right hand threads
L – Left-hand *- Substitute an ”L” in the part number for left hand leads
Stub Acme screws offer a larger root diameter than their Acme counterparts
*Available in stainless steel



Screw Material

A: Alloy Steel
S: Stainless Steel

Note: not all threads or materials are available for all sizes

First End of Screw

(Flange or threaded end of nut always faces second end)

Bearing Mount Options Machining Options (choose one that corresponds to the bearing block)
SB - Simple Single* 1N – Threaded shaft only
DB - Simple Double 2K –  Thd Shaft w Kwy, 2L – Thd Shaft no Kwy, 2N – Threaded shaft only
FB - Fixed Double 3K –  Thd Shaft w Kwy, 3L – Thd Shaft no Kwy, 3N – Threaded shaft only
XX - No Bearing 4K –  Shaft w Keyway, 4L – Shaft no Keyway, 4N – Support only, XX – No Machining

(When selecting ”XX – No Bearing”, choose from mounting options 1K through 4N  or XX, above)
* All Simple Single bearing mounts are designed for radial loads only

Second End of Screw

(Flange or threaded end of nut always faces away from second end)

Bearing Mount Options Machining Options (choose one that corresponds to the bearing block)
SB - Simple Single* 1N – Threaded shaft only
DB - Simple Double 2K –  Thd Shaft w Kwy, 2L – Thd Shaft no Kwy, 2N – Threaded shaft only
FB - Fixed Double 3K –  Thd Shaft w Kwy, 3L – Thd Shaft no Kwy, 3N – Threaded shaft only
XX - No Bearing 4K –  Shaft w Keyway, 4L – Shaft no Keyway, 4N – Support only, XX – No Machining

(When selecting ”XX – No Bearing”, choose from mounting options 1K through 4N  or XX, above)
* All Simple Single bearing mounts are designed for radial loads only

Nut Properties

B - Bronze
X - Do Not Include Nut in Assembly

Other Options

F - Include Flange
X - Do Not Include a Flange

Screw Length 000.00"

Enter value in inches with decimal if needed
Note that available screw length varies among screw sizes.

SB Bearing Blocks

jack

Screw Number Bearing Mount No. A B C D E F G H I J K
AS100R025A SB-15 3.500 2.125 1.125 0.375 1.375 1.250 2.500 0.813 1.625 .281 (4x) .406 Thru
AS100R050A .625 C'Bore
  1.000 Deep

DB Bearing Blocks

jack

Screw Number Bearing Mount No. A B C D E F G H I J K L
AS100R025A DB-15 3.500 2.125 1.125 0.375 1.375 1.250 2.500 0.813 1.625 .281 (4x) .406 Thru N/A
AS100R050A .625 C'Bore
  1.000 Deep

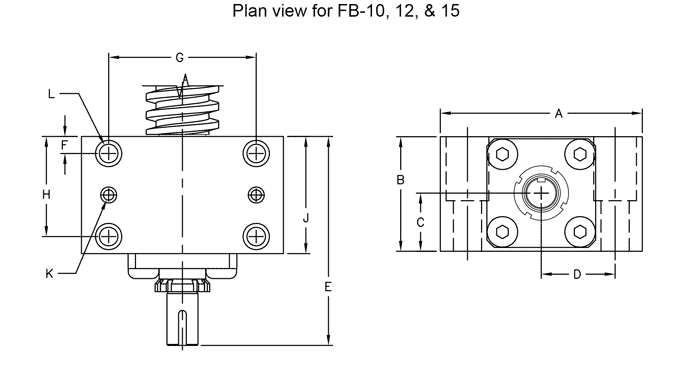

FB Bearing Blocks

jack

Screw Number Bearing Mount No. A B C D E F G H I J K L
AS100R025A FB-15 3.500 2.125 1.125 1.250 4.585 0.500 2.500 1.875 1.188 2.375 .250 Thru .406 Thru
AS100R050A .375 C'Bore .625 C'Bore
  #5 Taper Pin 1.130 Deep

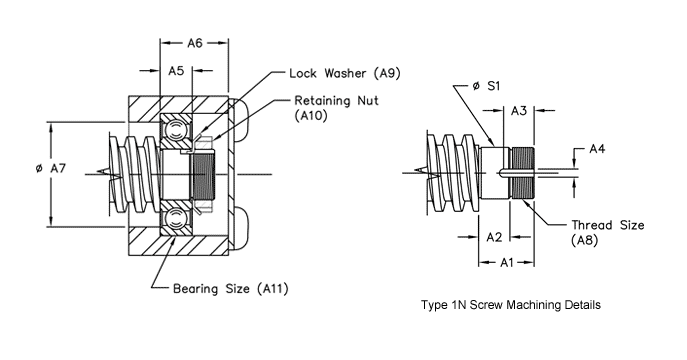

SB Screw End Conditions

jack

Screw Number Bearing Mount No. o S1 A1 A2 A3 A4 A5 A6 o A7 A8 A9 A10 A11
AS075R020A SB-12 0.4726 0.890 0.450 0.56 0.127 0.472 1.029 1.25 .469-32 UNS W-01 N-01 6301
AS088R050A 0.4723 0.125

SB Screw End Conditions

jack

Screw Number Bearing Mount No. o S1 A1 A2 A3 A4 A5 A6 o A7 A8 A9 A10 A11
AS100R025A SB-15 0.5908 0.930 0.490 0.56 0.127 0.512 1.094 1.38 .586-32 UNS W-02 N-02 6302
AS100R050A 0.5905 0.125

DB Screw End Conditions

jack

Screw Number Bearing Mount No. oS1 oS2 A1 A2 A3 A4 A5 A6 A7 A8 A9
AS100R010A DB-20 0.7877 0.625 4.00 2.88 2.378 0.590 0.040 .781-32 UNS W-04 N-04 3/16 x 5/8
SS100R100A 0.7873 0.624
AS125R025A

DB Screw End Conditions

jack

Screw Number Bearing Mount No. oS1 oS2 A1 A2 A3 A4 A5 A6 A7 A8 A9
AS100R025A DB-15 0.5908 0.500 3.59 2.59 2.145 0.512 0.040 .586-32 UNS W-02 N-02 1/8 x 5/8
AS100R050A 0.5905 0.499

DB Screw End Conditions

jack

Screw Number Bearing Mount No. oS1 oS2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11
AS100R025A FB-15 0.5908 0.500 4.62 3.31 2.73 2.000 0.512 0.995 0.035 .586-32 UNS W-02 N-02 1/8 x 5/8
AS100R050A 0.5905 0.499
