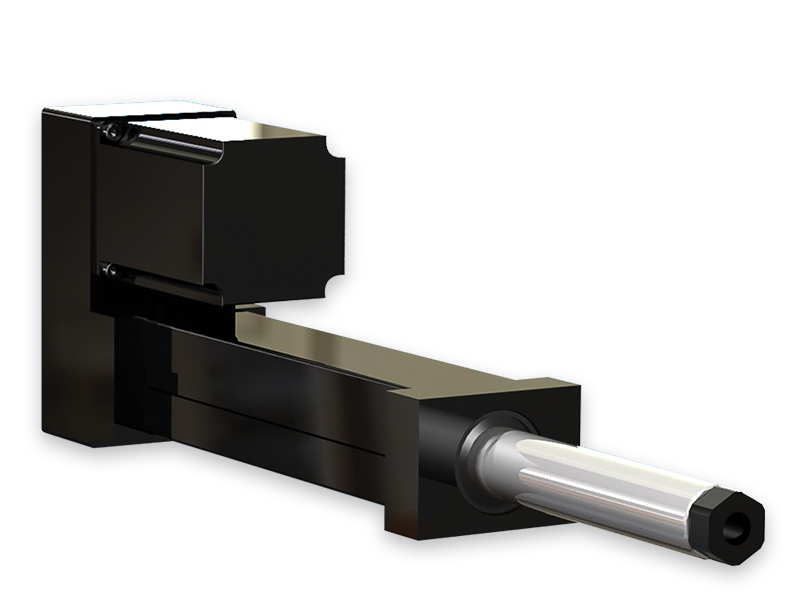

Tac LS ™



Tac LS ™

Key Features:

  • Developed for long stroke applications
  • Small size easily adapts to any standard unit mounting style
  • Long stroke actuator with thrust up to 2,000 lbf
  • Velocity up to 40 in/sec, stroke from 24 to 60 inches

Login to access the 2D/3D Drawings

Contact Joyce for 2D/3D models and drawings: [email protected]

(937) 294-6261 or (800) 523-5204

2D/3D Drawings

Login to access the 2D/3D Drawings

Charts

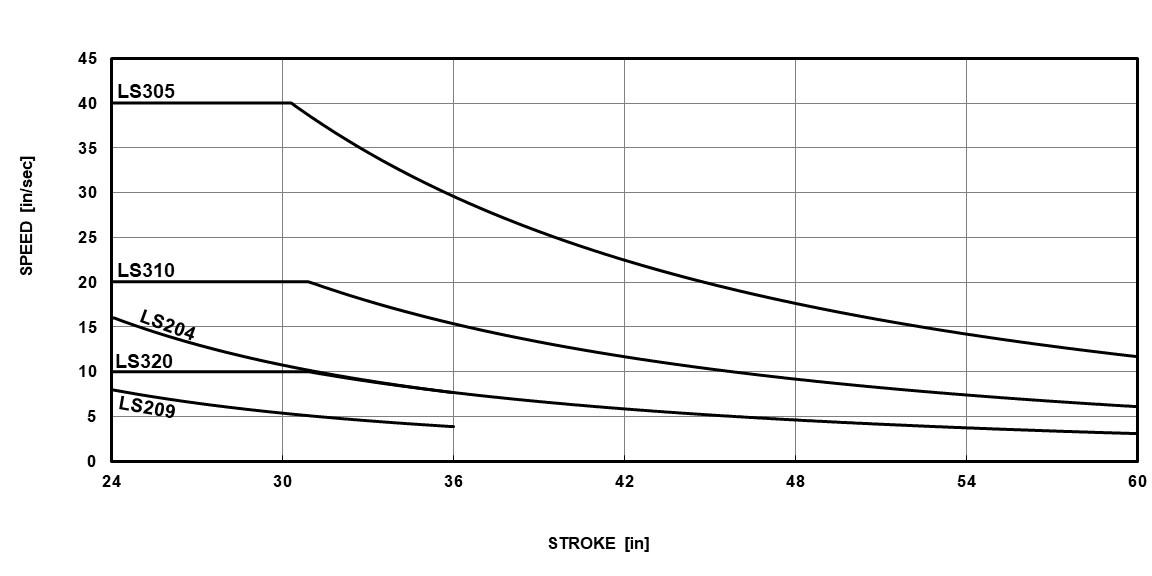

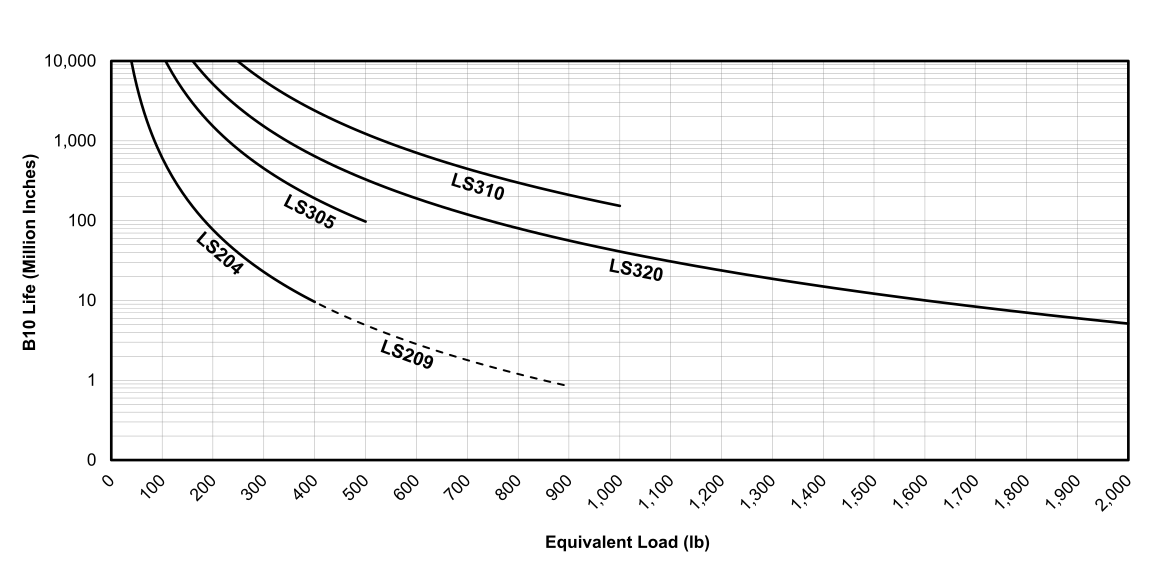

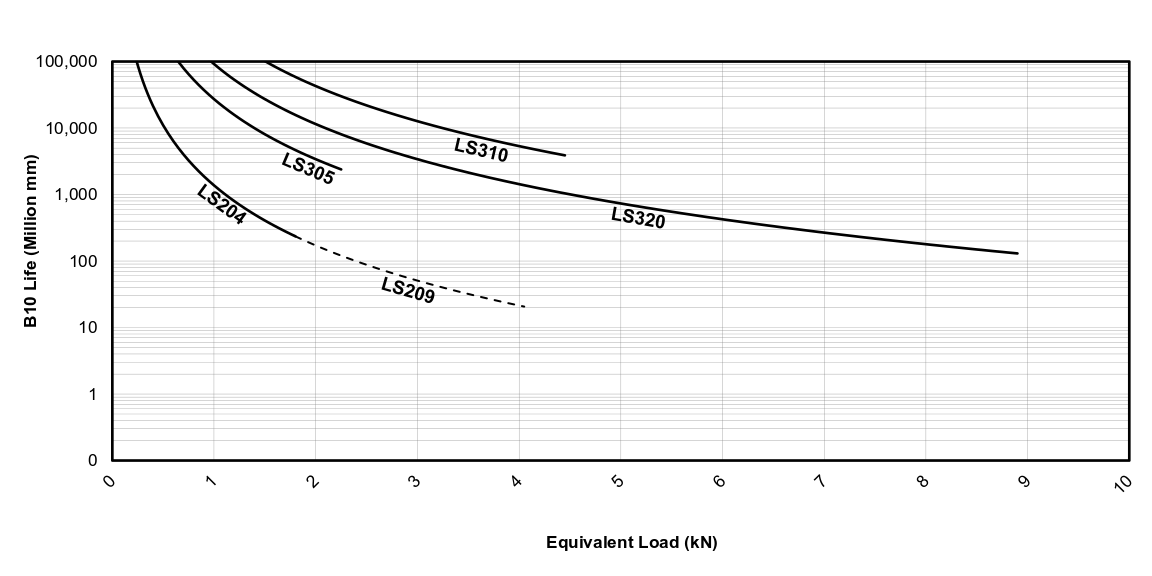

LIFE VS LOAD ENGLISH LIFE VS LOAD METRIC SPEED VS STROKE

Product Media

2D/3D DRAWINGSPRODUCT INFORMATION DIMENSIONED DRAWINGS ORDERING GUIDE APPLICATION WORKSHEET
jack

Available Products

Eliminator SD ™ 100,000 lbs max Eliminator HD ™ 25,000 lbs max Eliminator HDL with Integrated Load Cell ™ 25,000 lbs max Eliminator SP ™ 25,000 lbs max Eliminator SPL with Integrated Load Cell ™ 25,000 lbs max Eliminator SS ™ 2,000 lbs max Tac VT ™ 2,000 lbs max Tac VP ™ 2,000 lbs max Tac LS ™ 2,000 lbs max Universal Actuator UA ™ 500 lbs max

Tac VS

Long Stroke, High Speed, High Force

The Tac LS ball screw linear actuator series was developed for long stroke applications. This high quality, durable linear actuator, is constructed using rugged aluminum alloy cylinders and chrome plated heavy wall steel pistons. Its small size, as well as the ease of adapting it to any standard unit mounting style, makes the series of LS electric linear actuators a good fit in most linear motion industrial applications.

Login to access the 2D/3D Drawings

English

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units lbf in/s in in in RPM in-lbf lbf lbf in lb-in² lb-in² lb-in² lb-in² lb-in² lb-in² lb lb lb
LS204 400 16.0 36 2.25 0.500  1,920 35 1,070 850 3.50 1.60 0.0016 0.17 0.0004 0.15 0.0016 3 2 0.50
LS209 900 8.0 36 2.25 0.200  2,400 32 1,410 825 3.50 1.60 0.0029 0.17 0.0007 0.15 0.0029 3 2 0.50
LS305 500 40.0 60 3.25 1.000  2,400 88 2,300 2,300 4.50 4.26 0.0235 2.28 0.0059 0.29 0.0235 10 7 0.83
LS310 1,000 20.0 60 3.25 0.500  2,400 88 5,350 4,250 4.50 4.25 0.0223 2.28 0.0056 0.29 0.0223 10 7 0.83
LS320 2,000 10.0 60 3.25 0.250  2,400 88 5,475 3,450 4.50 4.24 0.0198 2.27 0.0049 0.28 0.0198 10 7 0.83

Metric

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units kN mm/s mm mm in RPM Nm kN kN mm kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg kg kg
LS204 1.78 406 914 57.2 0.500  1,920 4.0 4.76 3.78 89 468.55 0.4697 49.06 0.1174 43.48 0.4697 1 1 0.23
LS209 4.00 203 914 57.2 0.200  2,400 3.6 6.54 3.67 89 469.40 0.8597 49.27 0.2149 44.34 0.8597 1 1 0.23
LS305 2.22 1,016 1,524 82.6 1.000  2,400 10.0 10.23 10.23 114 1,245.87 6.8900 666.24 1.7225 85.26 6.8900 5 3 0.38
LS310 4.45 508 1,524 82.6 0.500  2,400 10.0 23.80 18.90 114 1,244.60 6.5172 665.93 1.6293 83.99 6.5172 5 3 0.38
LS320 8.90 254 1,524 82.6 0.250  2,400 10.0 24.35 15.35 114 1,242.02 5.7818 665.28 1.4455 81.41 5.7818 5 3 0.38

1. Maximum velocity and maximum screw speed may not be achievable at maximum stroke.
2. Larger Motor or Gearhead Frames and longer stroke lengths are available upon request.
3. All inertia values are at the input shaft and are representative of typical pulleys, bushings, couplers, etc. Actual values may vary due to motor selection.
4. Weight values are for reference only and vary depending on configuration.
"U"  Parallel offset configuration
"L"  Inline configuration
