Eliminator SS

Page Header

Edrive Products

Eliminator SS ™



Eliminator SS ™

Key Features:

  • Rugged steel construction with durable anti-rotation feature
  • Rated thrust up to 2,000 lbf
  • Extreme speed capability up to 63 in/sec, stroke up to 48 inches
  • Sealed chamber design with purge provisions to meet IP54

Login to access the 2D/3D Drawings

Contact Joyce for 2D/3D models and drawings: [email protected]

(937) 294-6261 or (800) 523-5204

2D/3D Drawings

Login to access the 2D/3D Drawings

Charts

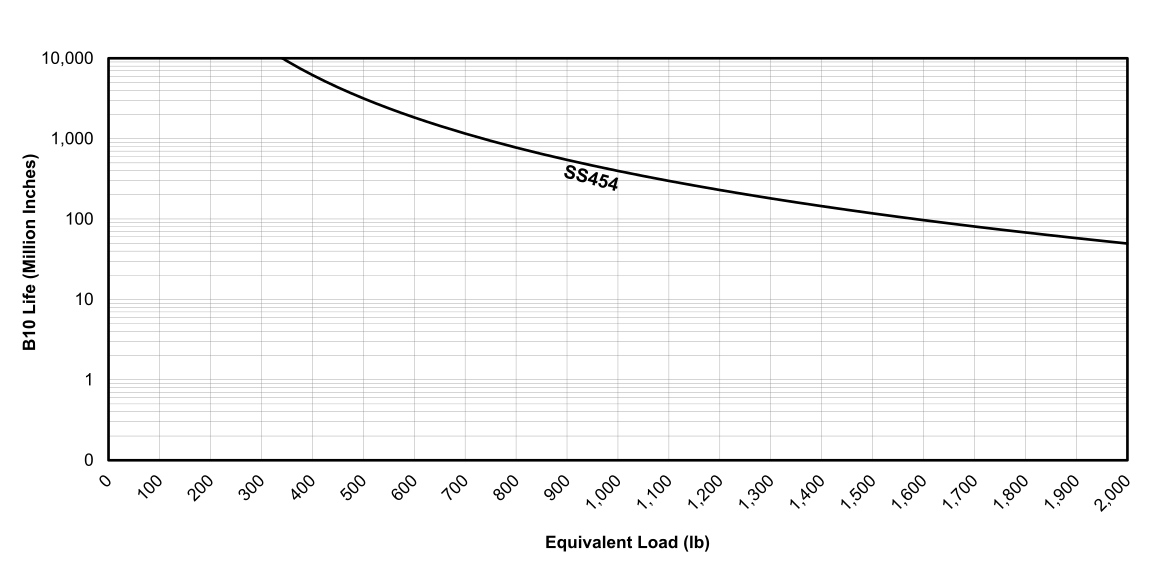

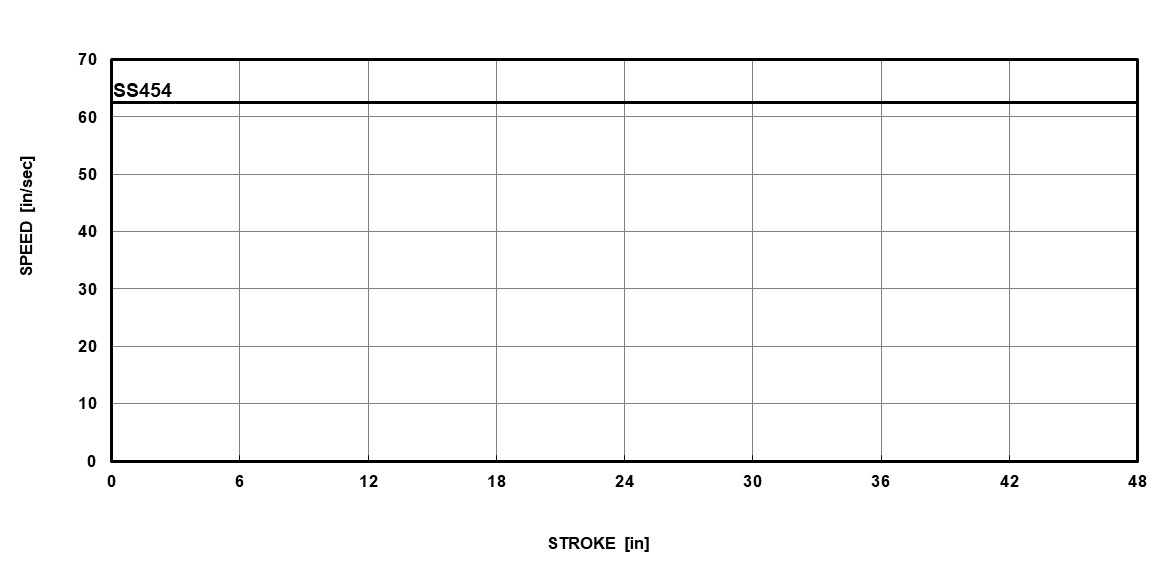

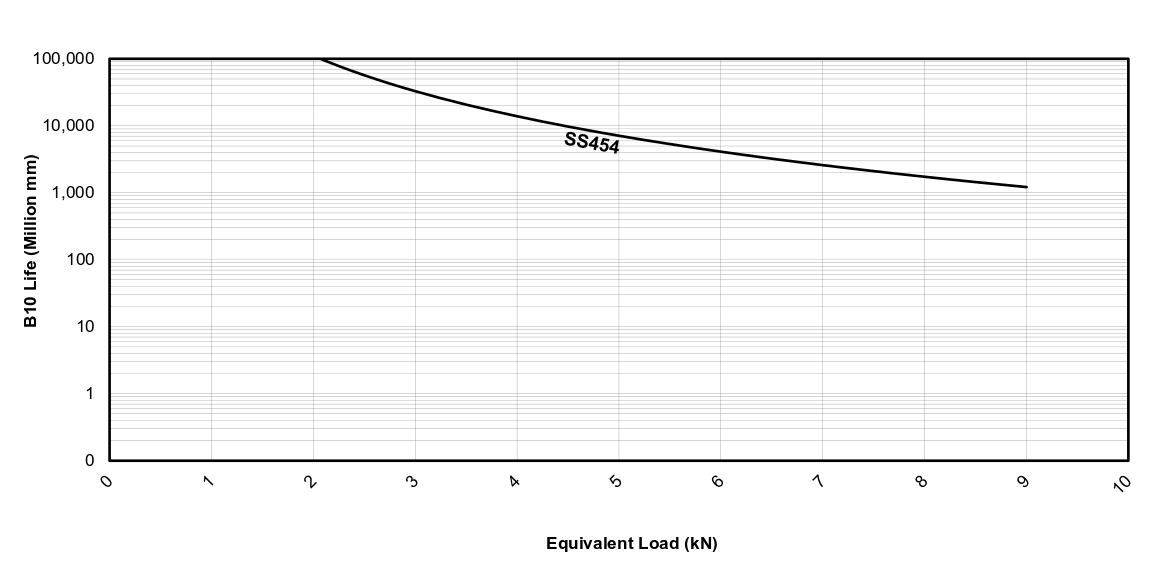

LIFE VS LOAD ENGLISH LIFE VS LOAD METRIC SPEED VS STROKE

Product Media

2D/3D DRAWINGSPRODUCT INFORMATION DIMENSIONED DRAWINGS ORDERING GUIDE APPLICATION WORKSHEET
jack

Available Products

Eliminator SD ™ 100,000 lbs max Eliminator HD ™ 25,000 lbs max Eliminator HDL with Integrated Load Cell ™ 25,000 lbs max Eliminator SP ™ 25,000 lbs max Eliminator SPL with Integrated Load Cell ™ 25,000 lbs max Eliminator SS ™ 2,000 lbs max Tac VT ™ 2,000 lbs max Tac VP ™ 2,000 lbs max Tac LS ™ 2,000 lbs max Universal Actuator UA ™ 500 lbs max

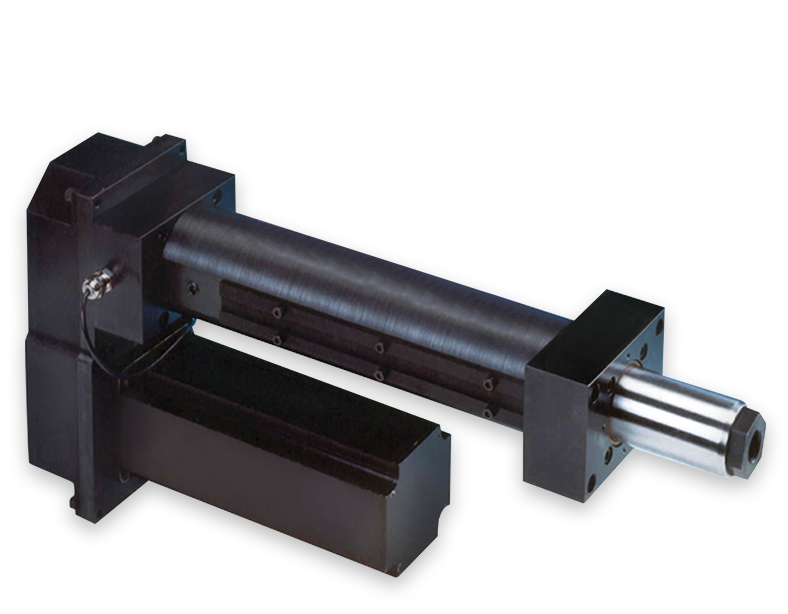

Eliminator SS

Extreme Speed Capability in an Eliminator Platform

The Eliminator SS Super Speed actuator is the linear solution for those automation applications demanding extremely high-speed motion. This combination of high thrust capacity, fast actuation, and precision motion are all provided in a strong, durable, actuator built on the Eliminator HD platform and adaptable to your servomotor.

Login to access the 2D/3D Drawings

English

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units lbf in/s in in in RPM in-lbf lbf lbf in lb-in² lb-in² lb-in² lb-in² lb-in² lb-in² lb lb lb
SS454 2,000 63.0 48 4.50 1.875  2,016 663 5,960 7,350 7.00 17.38 0.1241 5.93 0.0310 2.20 0.1241 87 62 2.14

Metric

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units kN mm/s mm mm mm RPM Nm kN kN mm kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg kg kg
SS454 8.90 1,600 1,219 114.3 1.875  2,016 74.9 26.51 32.69 178 5,086.63 36.3312 1,734.96 9.0828 642.48 36.3312 40 28 0.97

1. Maximum velocity and maximum screw speed may not be achievable at maximum stroke.
2. Larger Motor or Gearhead Frames and longer stroke lengths are available upon request.
3. All inertia values are at the input shaft and are representative of typical pulleys, bushings, couplers, etc. Actual values may vary due to motor selection.
4. Weight values are for reference only and vary depending on configuration.
"U"  Parallel offset configuration
"L"  Inline configuration
