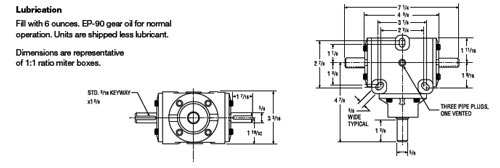

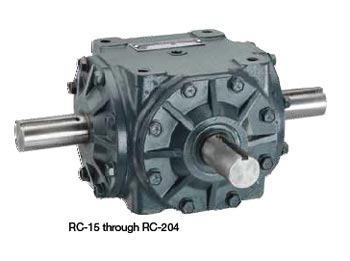

Joyce RC-15 miter gearboxes are specifically engineered for use with Joyce jacks and actuators in multiple jack systems. These intermediate sized miter gear boxes are rated for 357 inch-pounds torque @ 100 RPM. Each requires 6 ounces of EP-90 gear oil for normal operation. They feature aluminum housings, stainless steel input shafts and nickel-plated pinion shafts. Standard miter boxes are available in 1:1 and 2:1 ratios, but other ratios are available.

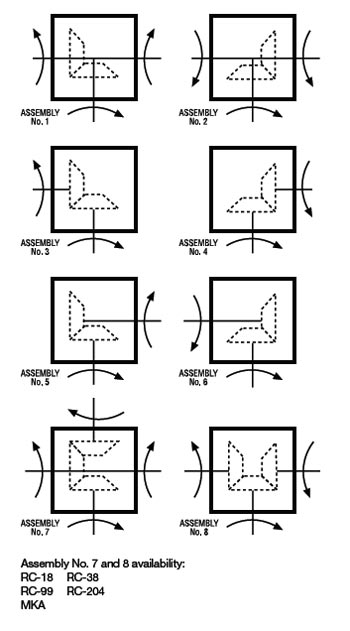

Miter gearboxes are important components in jack and actuator systems and it is important to select the best option based on torque requirements and rotational configuration. Refer to the list of part numbers for each miter box size.
